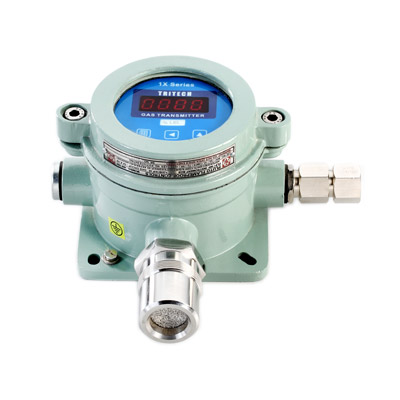

1X SERIES
1X series Gas leak transmitters are designed to provide most advanced
features like Integrated bright LED field display, RS-485, 4-20 mA output and
Magnetic Key operation for convenience of one man calibration. 1X series
transmitters have very bright 4 digit, 7 segment LED display which increases
visibility of gas readings in dark or from a distance. 1X series transmitters can
be supplied with IIA / IIB or IIC certification of PESO/CMRI/ERTL(E)
- Non-intrusive calibration via Magnetic Wand
- 4-20 mA & digital Modbus output standard
- Direct digital readout on Bright LED display
- Operates independent of a controller
- Explosion proof housing
- Available for Combustible, Oxygen & Toxic Gases
- User friendly setup
- Uses reliable long life sensors
- LPG / CNG Storage and Distribution
- Automotive Manufacturing
- Chemical Plants
- Petrochemical & Refineries
- Pharmaceuticals and Drug Manufacturers
- Power & Fertiliser Plants
- Waste Water Treatment & Effluent Treatment
- IIA – IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)
| Combustible | Toxic | Oxygen | |
|---|---|---|---|
| Model No. | 1X-FL | 1X-TX | 1X-TX |
| Gas Range | All Combustible gases 0 – 100% LEL 0 – 100% VOL Combustible gas |
CO, S02, HCN, HCL, NH3, H2S, VOC, BENZENE, NO, N02, PH3, H2, CL2, HF, BR2 0 – 5, 10, 15, 25, 50, 100, 250, 500, 1000 ppm (to be specified) | Oxygen 0 – 30% VOL 0 – 100% VOL |
| Sensor Type | Catalytic combustion OR Infrared | Electro Chemical OR Semi Conductor OR PID | Electro Chemical OR Galvanic |
| Sampling | Diffusion (Optionally can be integrated with sampling system) | ||
| Output | Analog : 4-20 mA linear (non isolated) Digital : Modbus RTU output standard, fully configurable 2 wire RS-485 |
||
| Display | 4 Digit, 7 segment 0.56” bright LED Display | ||
| Response Time | < 30 sec for T90 | ||
| Operating Voltage | 18 – 32 V DC | ||
| Controls | Magnet used for calibration functions, calibration without opening the housing Internal push-button controls also available for calibration and setup |
||
| Protection | Flame proof, weather proof certified for IIA, IIB & IIC Gas Group | ||
| Operating Temperature | -00 to 600 C | ||
| Humidity | 0 – 95% RH (non-condensing) | ||
| Applicable Cable | 3 core, 1.5 Sq.mm. | 2/3 core, 1.5 sq.mm | 2 core, 1.5 Sq.mm. |
| Optional Accessories | Rain canopy, Mounting stands, Sampling system, Trilog software | ||
