| Model | GX-8000 LEL | GX-8000 02 |
|---|---|---|
| Target Gas | Combustibles in air (CH4, i-C4H10, H2, n-C6H10, C7H8, others) Specify one gas when ordering. |
Oxygen in air & inert (02) |
| Detection Principle | Catalytic Combustion | Galvanic Cell |
| Detection Range (Increments) |
0-100%LEL (1%LEL) |
0-40.0% (0.1%) |
| Gas Alarm | 1st : 10%LEL 2nd : 50%LEL |
Low alarm : 19.5% High alarm : 23.5% |
| Types of Alarm | Gas alarm : Latching, 2 alarms Failure alarm : Flow failure, Sensor failure, Battery failure, Circuit failure, Calibration failure |
|
| Display of Alarm | LED : LED’s flash Buzzer : Buzzer sounds alternating between a low and high pitch Visual indication : Indication value flashes. Alarm message displays and flashes. |
|
| Alarm Sound | more than 95db (A) at 30cm | |
| Display | Digital LCD with auto backlight Digital display (7 segments) and digital bargraph (50 segments) |
|
| Sampling Method | Sample draw, Minimum 0.75L/min | |
| Power Souce | AA Alkaline battery (3pcs) : Standard Lithium-ion battery : Option (3 hours for a full charge |
|
| Continuous Operation | AA Alkaline battery : more than 6 hours Lithium-ion battery : more than 12 hours |
AA Alkaline battery : more than 12 hours Lithium-ion battery : more than 20 hours |
| Operating Temp & Humidity | -20∼+50°C, -4∼+122°F below 95%RH (Non-condensing) | |
| Dimensions & Weight | Approx. 154(W) x 81(H) x 127(0) mm, Approx. 0.9Kg (Alkaline battery)/1.0Kg(Lithium-ion battery) Approx. 6.1″(W) x 3.1 “(H) x 4.9″(0), Approx. 2.0lb (Alkaline battery) / 2.2lb (Lithium-ion battery) |
|
| Ingress Proof Rating | Equivalent to IP67 | |
| Explosion Proof | Intrinsically safe Exia II CT4 | |
| Approvals | IECEx, ATEX, TIIS, MED, HK, CE mark Complying to IEC60079-29-1 |
|
| Additional Features | Indication to show energizing (pilot indicator and pump driving indicator), Activating confirmation beep and LED’s flash (every one minute), Pump stop function, Bump test function, IrDA communication, Data logger, Password protection | |
+91-9072707561 | +916374994856

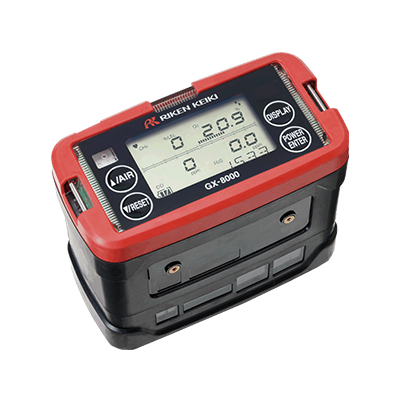

GX-8000
GX-8000
Portable Gas Detectors GX-8000 Oxygen / Combustible is specially design to measure Oxygen / Flammable Gas concentration from remote location / confined spaces, using a very strong in built pump. The display gives simultaneous reading of Gas concentration in Bar graph as well as Digits. Option of Alkaline as well as rechargeable battery pack is available.
-
- ATEX Exia II CT4 approved
- Water and dust resistanr IP67
- Loud alarm buzzer with 95db
- Strong sample deawing capability (0.75L/min)
- Digital display & digital bargraph
- 3 bright LED alarm windows
- Datalogging standard
- Ergonomic design with waise strap for hands free operation (option)
- Lithium-ion rechargeable battery (option)
- Confined Space
- Refineries / Petrochemical / Chemical plants
- Oil tanker / Gas carrier / Bulk carrier
- Chemical Tanker
- Water / Wastewater Treatment
- Fire Services
- Telecommunication Services
- Power Plant
- Gas Plant / Gas Supplier Services
- Utilities
- Coating Field
- Fuel Cell Facilities
- IECEx, ATEX, TIIS MED, HK, CE mark
- Complying to IEC60079-29-1
- CCOE (PESO)
Specfications subject to change without notice
