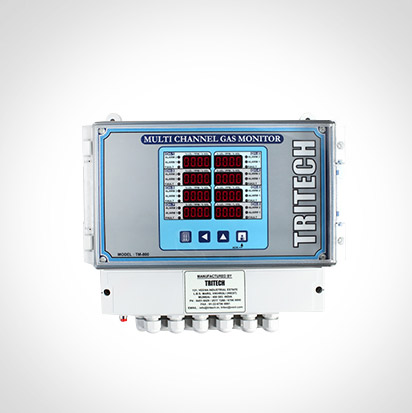

TM-800 / 1600

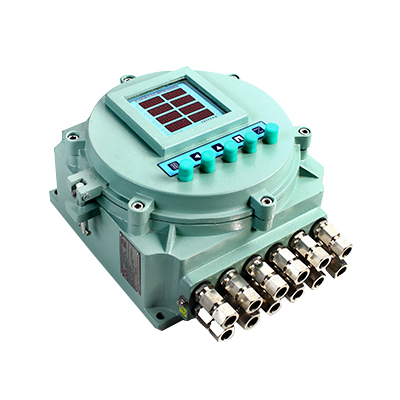

This is world’s most compact, light weight, Micro controller based Multi channel Gas monitor with Individual Display. Flameproof version of TM-800/1600 is special developed and designed to meet industry requirement of Gas Monitors that need to be mounted in Hazardous area (Explosion/ Flame proof locations). These Monitors are enabling customer to save huge amount of money in Cable and Cabling cost. These models not only provide Gas reading for each channel but they also have Relay contacts and RS-485 output for external Audio-visual Alarms or for Data Loging respectively. Magnetic Key operated procedure provides ease of 1st time programming and routine calibration and maintenance. Flameproof models are available for Gas group IIA-IIB or for IIC. All the Explosion proof versions are PESO/CMRI/ERTL(E) approved
- 8/16 Channel Individual Display
- Accepts 4-20 mA Input
- Fully Configurable Alarm Relays
- Lamp Test Facility
- RS-485 Modbus Output
- In-built Audio Alarm with Accept facility
- Weather proof and Dust proof (IP 65) enclosure [Optionally available in Flameproof enclosure]
- Uses reliable long life sensors
- IIA – IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)
| Combustible | |
| Gas Range | 0 – 100% LEL Combustible gas in air |
| Detector Type | 3 Wire Transmitter |
| Sensor Type | Catalytic Combustion OR Infrared |
| Alarms | Two Adjustable Alarm Levels, i.e. Alarm 1 and Alarm 2 |
| Display | 4 digit bright continuous LED digital read out for each Channel |
| Indicators | Alarm 1, Alarm 2 individual Red LED, Fault Amber LED |
| Contacts | Common : SPDT Potential free contact for Alarm 1, Alarm 2 & Fault Contacts Rated 230 V AC, 5 Amp |
| Output | Digital : Modbus RTU output standard, fully configurable 2 wire RS-485 |
| Power Supply | 230 V AC or 110 V AC, 50 Hz, Others on request |
| Dimensions | Non Flame proof
Flame proof
|
| Mounting | Wall / Surface Mounted |
| Protection | Dust and Weather proof to IP-65 standard (Optionally Flameproof) |
| Operating Temp. | 00 to 600 C |
| Humidity | 0 – 95% RH, Non-Condensing |
| Optional Accessories | Trilog software |
