TM-08/16

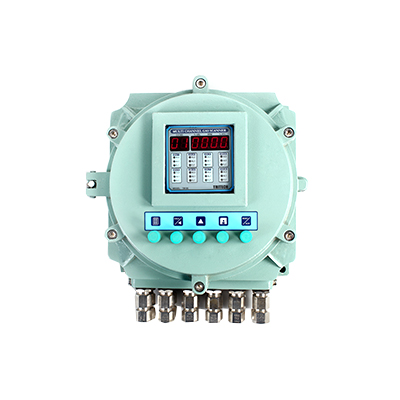

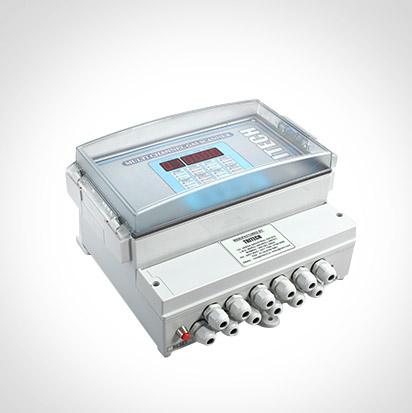

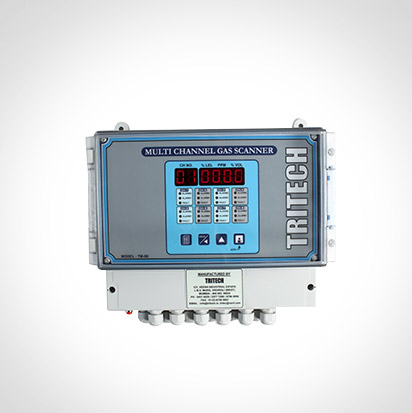

TM-08/16 is especially suitable for application were Multi Channel display type system is to be installed with budget limitations. These Models are basically micro controller based Gas scanners of 08 / 16 channels. They are available in Flameproof and Safe area mounting versions. Special features that provide cutting edge over competition in market are Individual LED indication for each channel, Lamp test facility, Relay Contacts, and RS-485 output. All Tritech make Gas transmitters can be connected to Model TM-08/16. Flameproof models are available for Gas group IIA-IIB or for IIC. All the Explosion proof versions are PESO/CMRI/ERTL(E) approved.
- IIA – IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)
| Combustible | Toxic | Oxygen | |
| Gas Range | 0 – 100% LEL Combustible gas in air |
CI2:0 – 5 upto 50 PPM
S02:0 – 10 PPM
HCN:0 – 25 PPM
H2S:0 – 100 PPM
CO:0 – 1000 PPM
VOC:0 – 1000 PPM
NH3:0 – 1000 PPM
(Other Gases on Request) |
0 – 5, 10, 15, 20, 25, 30% V/V O2 Or 0 – 1000, 1999 |
| Detector Type | 3 Wire Transmitter | 2 Wire Transmitter | 2 Wire Transmitter |
| Sensor Type | Catalytic Combustion OR Infrared | Electro Chemical, Semiconductor OR PID | Electro Chemical OR Galvanic |
| Alarms | Two Adjustable Alarm Levels, i.e. Alarm 1 and Alarm 2 | ||
| Display | Common 4 digit bright continuous LED digital read out for Gas Conc. &
Single digit for Channel no. |
||
| Indicators | Alarm 1, Alarm 2 individual Red LED, Fault Amber LED | ||
| Contacts | Common : SPDT Potential free contact for Alarm 1, Alarm 2 & Fault Contacts Rated 230 V AC, 5 Amp |
||
| Output | Digital : Modbus RTU output standard, fully configurable 2 wire RS-485 | ||
| Power Supply | 230 V AC or 110 V AC, 50 Hz, Others on request | ||
| Dimensions | Non Flame proof
Flame proof
|
||
| Mounting | Wall / Surface Mounted | ||
| Protection | Dust and Weather proof to IP-65 standard (Optionally Flameproof) | ||
| Operating Temp. | 00 – 600 C | ||
| Humidity | 0 – 95% RH, Non-Condensing | ||
| Optional Accessories | Trilog software | ||
