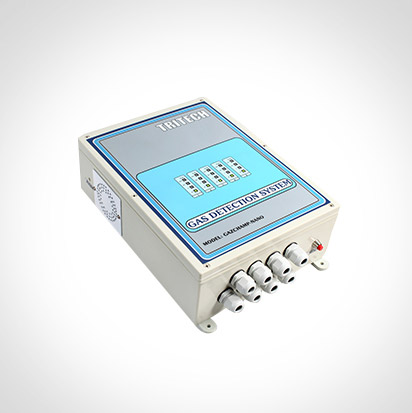

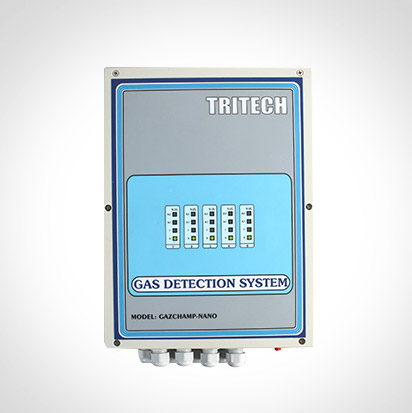

GAZCHAMP-NANO

When safety against Gas leakage of Gases like LPG, CNG, IPA, Methane, Propane, Butane, Hexane, Alcohols, Hydrogen and various other Combustible Gases is required with budgeting restrictions then Gazchamp-Nano is the only solution. Gazchamp-Nano is economically priced but basic characteristics of a reliable Gas Detection system is not compromised. It’s equipped with basic features like Flameproof / Explosion proof Detector, Audio –Visual Alarm, Relay contact for remote signaling or control and on-site calibration. Gazchamp-nano is most suitable for LPG Banks, Fuel storage installations, Commercial Kitchen, Food Chains, Malls, Fivestar Hotels, Resorts and any location that requires protection against Gas leakages.

Download Brochure

FEATURES APPROVALS SPECIFICATION

Fast response on Gas leak
Individual LED for each channel
Detector certified flameproof
Uses reliable Catalytic Sensor
On site calibration facility
Independent monitor card for each Detector
User adjustable Alarm levels
Relay Contact for AL1 or AL2 & Common Fault
Temperature compensator to avoid False Alarm

IIA – IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)


Range	0 to 100% LEL combustible gas in air or other Gases on request
Sensor	Reliable Catalytic sensor
Alarms	Two alarm level, factory set at 10% & 50% LEL User adjustable.
Indicators	2 nos. Red LED for Alarm 1 & Alarm 2 Amber LED for Fault Green LED for Normal (Pilot)
No. of Channels	5 Channels / 9 Channels / 16 Channels
Buzzer	In-built
Enclosure & Mounting	Reinforced Plastic, Wall / Surface mounted
Dimensions	For 5 & 9 Channels : 235 mm(W) X 318 mm(H) X 100 mm(D) For 16 Channels : 500 mm(W) X 360 mm(H) X 158 mm(D)
Output	1 no. Potential free contacts for Alarm 1 or Alarm 2 (factory set) & Common Fault, Contact rated 230 V AC, 2 Amp.
Power Supply	230 V AC or 110 V AC, 50 Hz Others on request
Operating Temp.	0 – 60 Degrees Centigrade
Humidity	0 – 95% RH, Non-Condensing
Ordering Info	Suffix A1 if Relay contact for Alarm 1 Suffix A2 if Relay contact for Alarm 2
